LOADING SPOUTS
FOR OPEN OR CLOSED TRUCKS

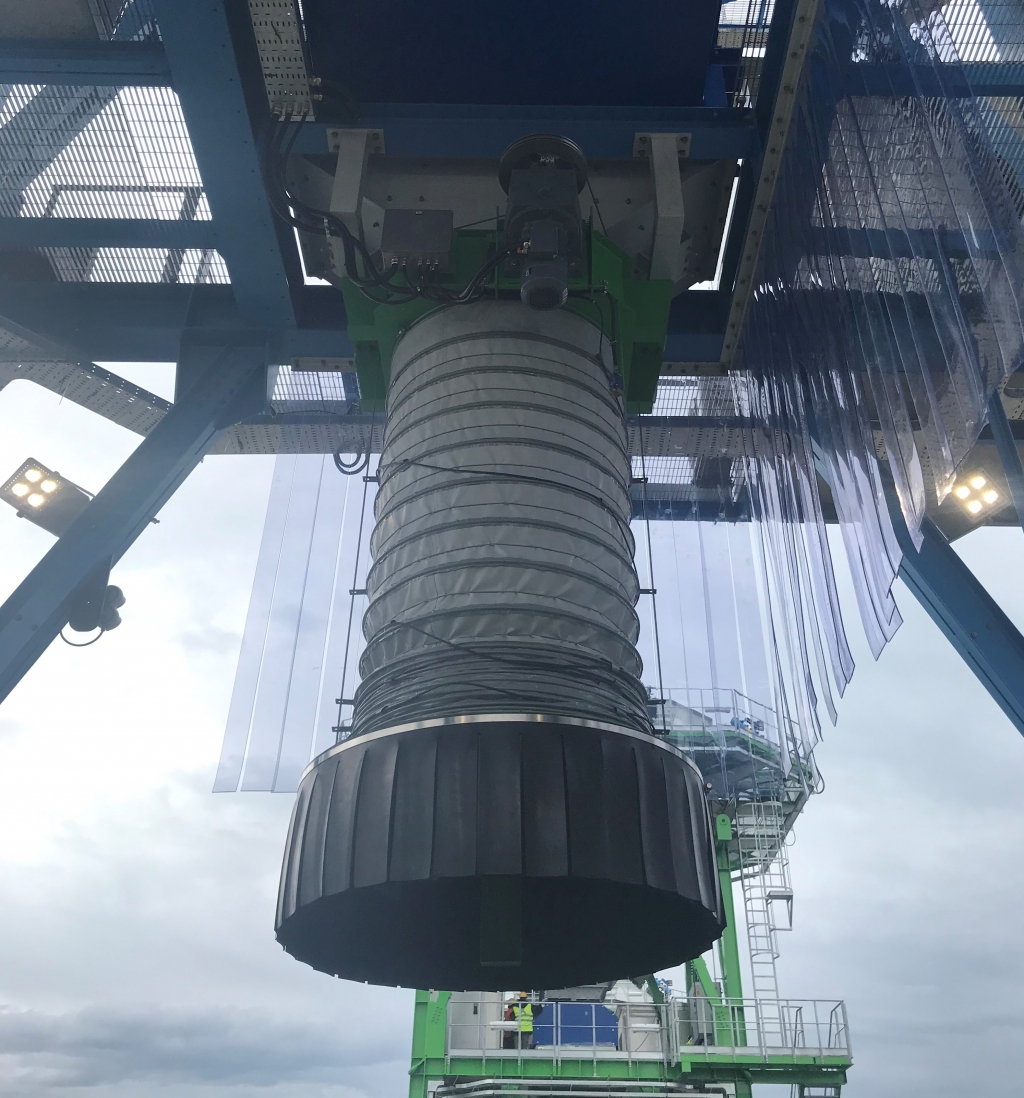

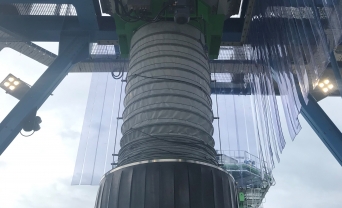

FOR OPEN TRUCKS:
GRANULAR AND LUMPS
STANDARD STROKE: 3000 mm
INTERNAL BELLOW: TEXTILE BELLOW OR STEEL PIPES
OPEN LOADING HEAD WITH RUBBER SKIRT FLOW RATE: up to 300 m3/h

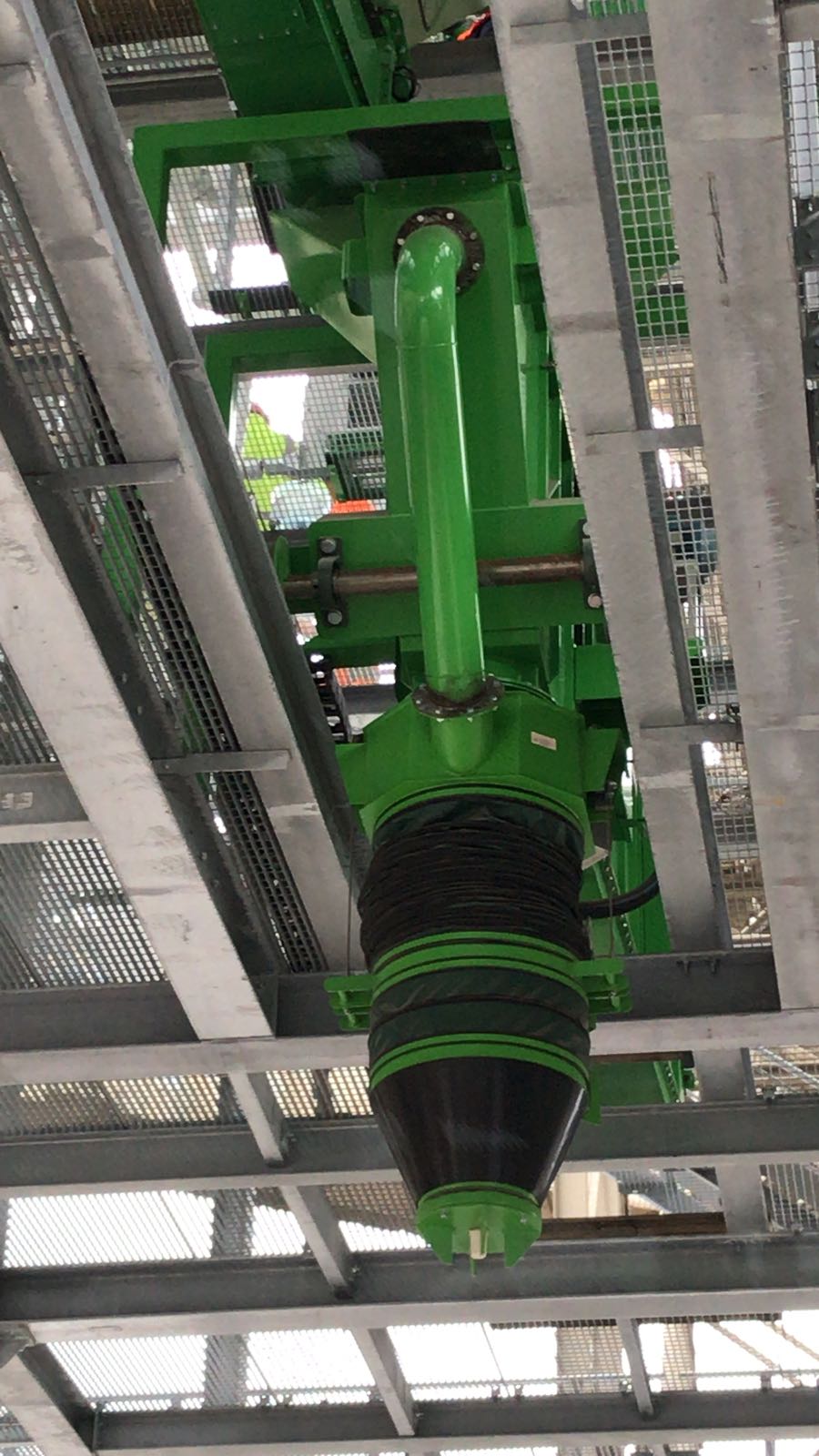

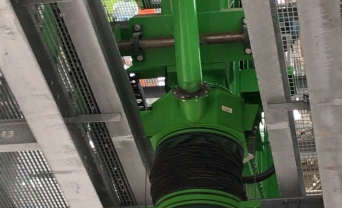

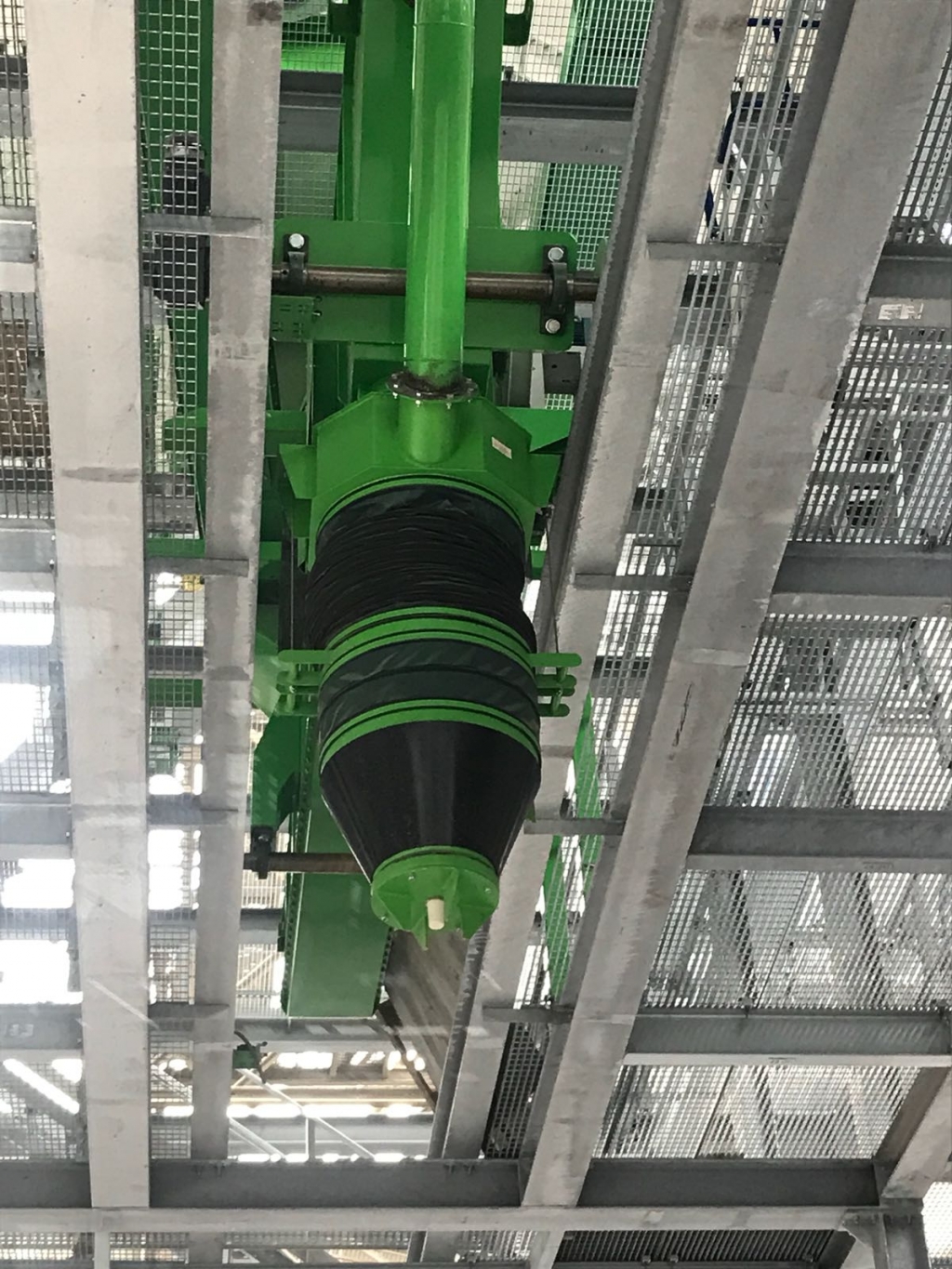

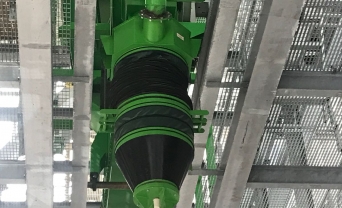

FOR CLOSED TRUCKS:
FINE AND DUSTY
STANDARD STROKE: 1500 mm
INTERNAL BELLOW: TEXTILE BELLOW OR STEEL PIPES CONIC LOADING HEAD FLOW
RATE: up to 400 m3/h
GRANULAR AND LUMPS
STANDARD STROKE: 3000 mm
INTERNAL BELLOW: TEXTILE BELLOW OR STEEL PIPES
OPEN LOADING HEAD WITH RUBBER SKIRT FLOW RATE: up to 300 m3/h
FOR CLOSED TRUCKS:
FINE AND DUSTY
STANDARD STROKE: 1500 mm
INTERNAL BELLOW: TEXTILE BELLOW OR STEEL PIPES CONIC LOADING HEAD FLOW
RATE: up to 400 m3/h
