STRUCTURES & PLANT DESIGN

PLANT DESIGN: A COMPLETE SERVICE

• Lay-out engineering
• ENGINEERING DRAWINGS (2D and 3D files)
• P&ID
• Motor and user list
• Erection drawings
• Technical report and calculation of steel structure
• Plant layout

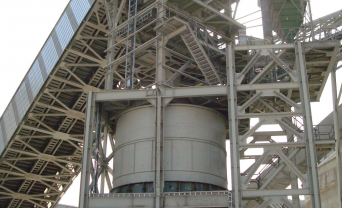

• Design and detailing of silos

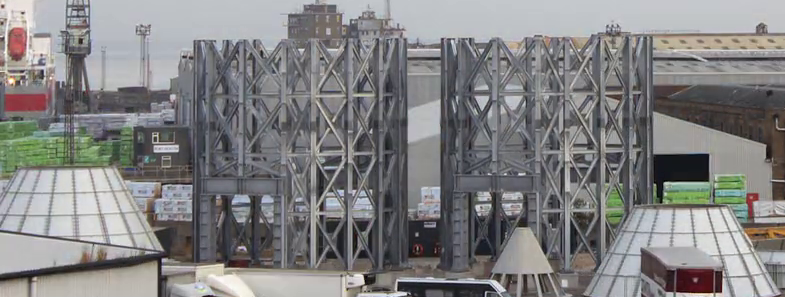

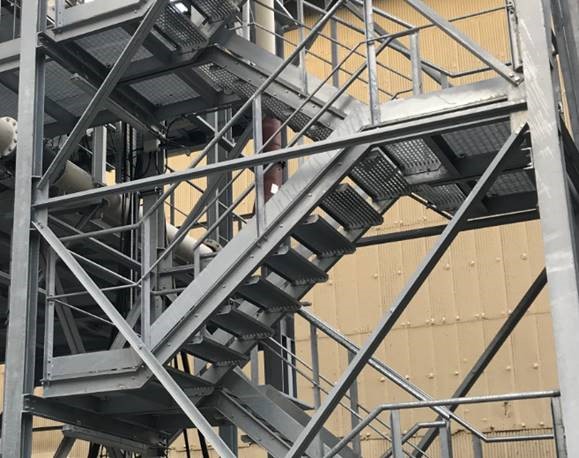

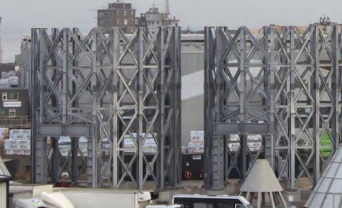

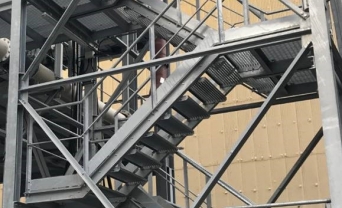

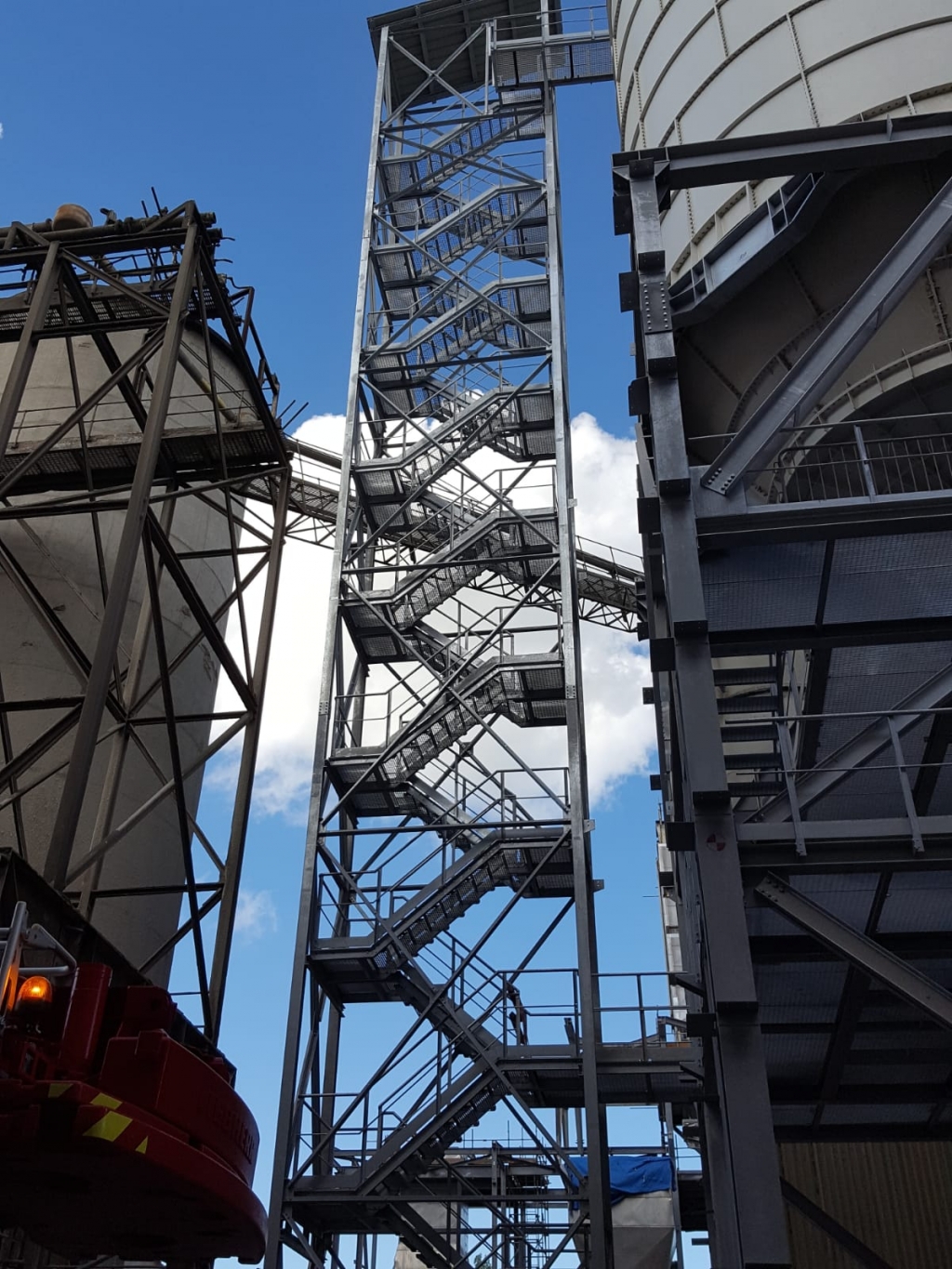

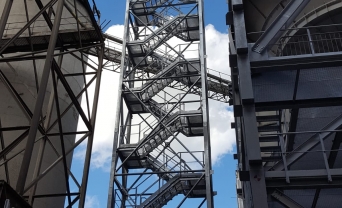

• Design and detailing of silo support structure & stair tower

ADDITIONAL SERVICES
Design of a packing implant on several levels for lime, that includes an automatic rotary bag filler, a big-bag filler, a hanged loader for bags on trucks, a palletizing line.

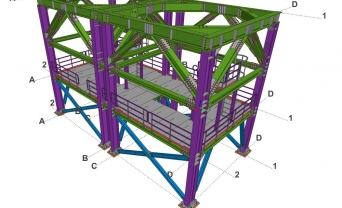

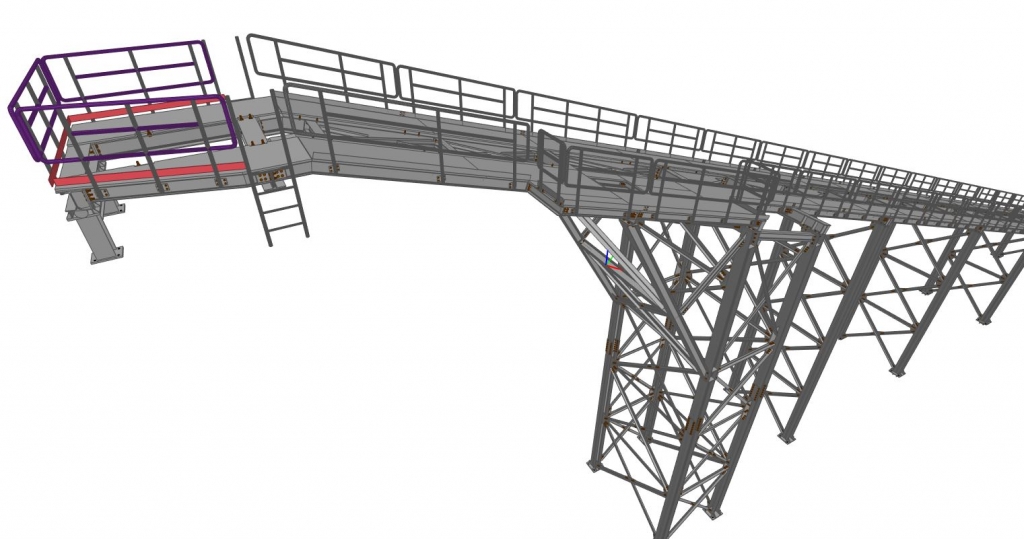

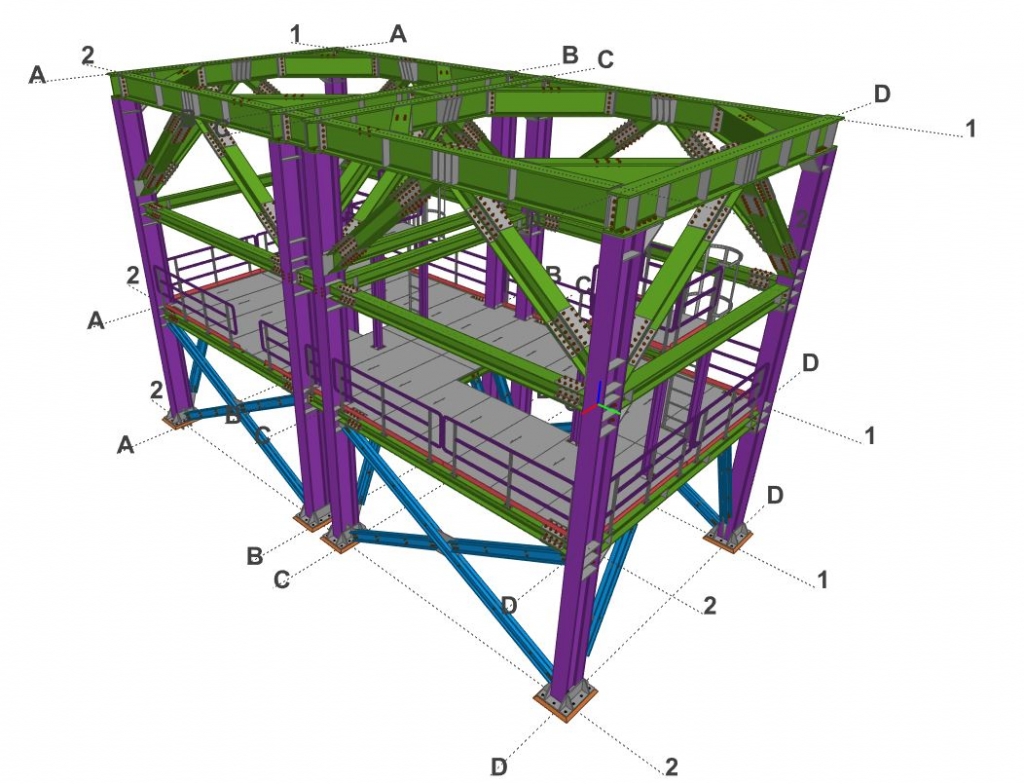

STRUCTURE DESIGN

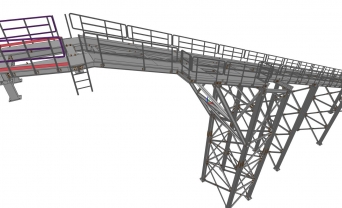

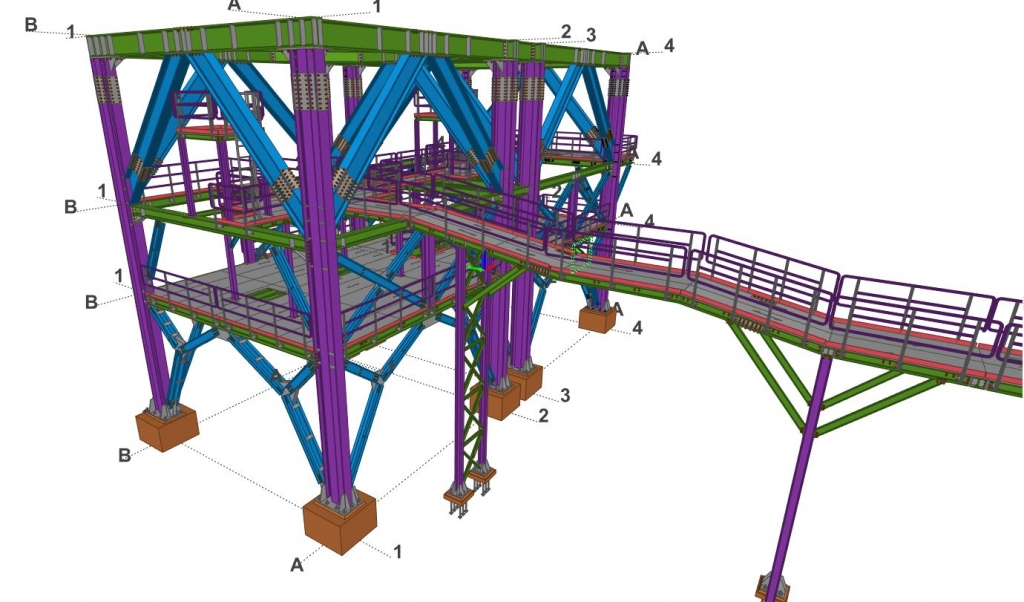

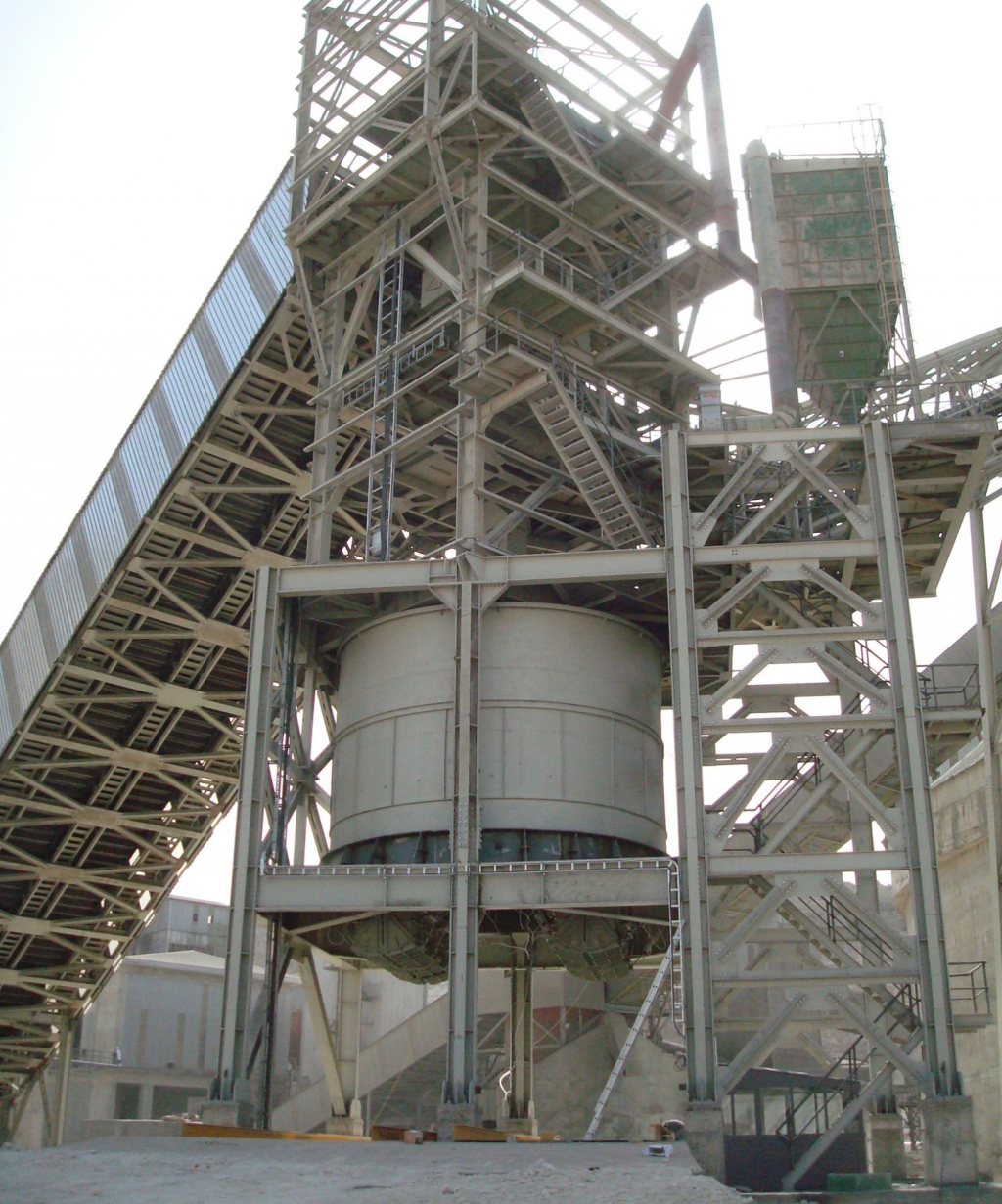

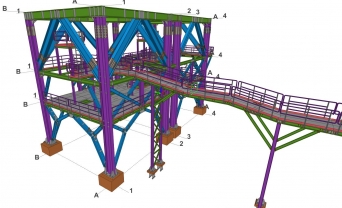

Design of industrial steel structures and “turn key” customized solutions for our customers.

WOULD YOU LIKE TO KNOW MORE ?
